Countdown: The A to Z of GFS

In this fifth edition of the Countdown newsletter, we look at the importance of the reduction values in a Global Fuel Standard (GFS) in achieving net-zero emissions by 2050. Known as the Z-factors or reduction factors, these values establish a limit on annual GHG intensity per vessel. We used our integrated assessment model, NavigaTE, to evaluate Z-factors from scenarios in the Comprehensive Impact Assessment report by DNV. We analyzed if these Z-factors enable a transition to net-zero in line with the 2023 IMO GHG Strategy.

Not a subscriber yet? Sign up for Countdown newsletters here.

In our previous edition, we showed that setting the RU cost high enough can incentivize a transition to sustainable fuels. Our modeling found that an RU of at least 450 USD per tonne of CO₂eq (USD/tCO₂eq) is needed to meet the indicative checkpoints set out in the 2023 IMO GHG Strategy (hereafter ‘the Strategy’).

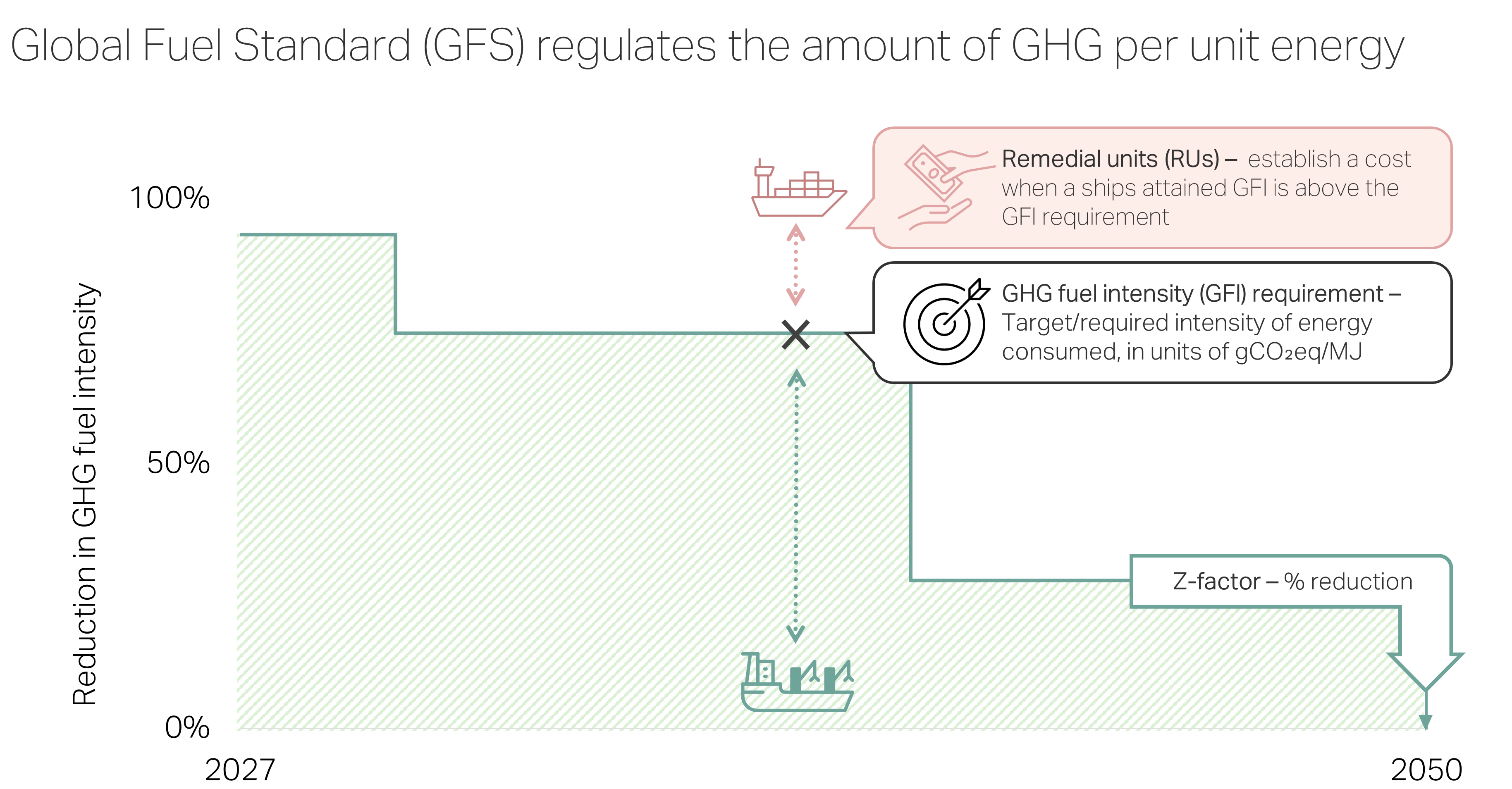

In this edition, we focus on Z-factors, which define the pace and scale of the transition. When the RU is set high enough to bridge the cost gap for sustainable alternatives — which are often significantly more expensive than fossil fuels — annual Z-factors dictate how much sustainable energy will be adopted, and how quickly. If the RU is not high enough to close the cost gap with fossil fuels, companies will likely buy RUs and continue using fossil fuels. In this case, Z-factors will only dictate what portion of vessels’ emissions is subject to additional costs.

Z-factors and absolute emissions reductions aren’t the same

The GFS regulates a vessel’s emissions intensity rather than the sum of total annual emissions (absolute emissions). Therefore, finding the right Z-factors to meet the indicative checkpoints for absolute emissions in the Strategy depends on future growth of shipping.

Pathways in the Fourth IMO GHG Study assume growth in global maritime trade. Drawing on development pathways, that study anticipates a decrease in trade in some shipping sectors (e.g., dry bulkers carrying coal), but this decrease is more than offset by growth in other sectors (e.g., containers). As a result, GFI requirements, which are based on emissions intensity, need to go beyond targeted absolute emissions reductions to compensate for trade growth.

The base Z-factors are a good candidate to align with the Strategy

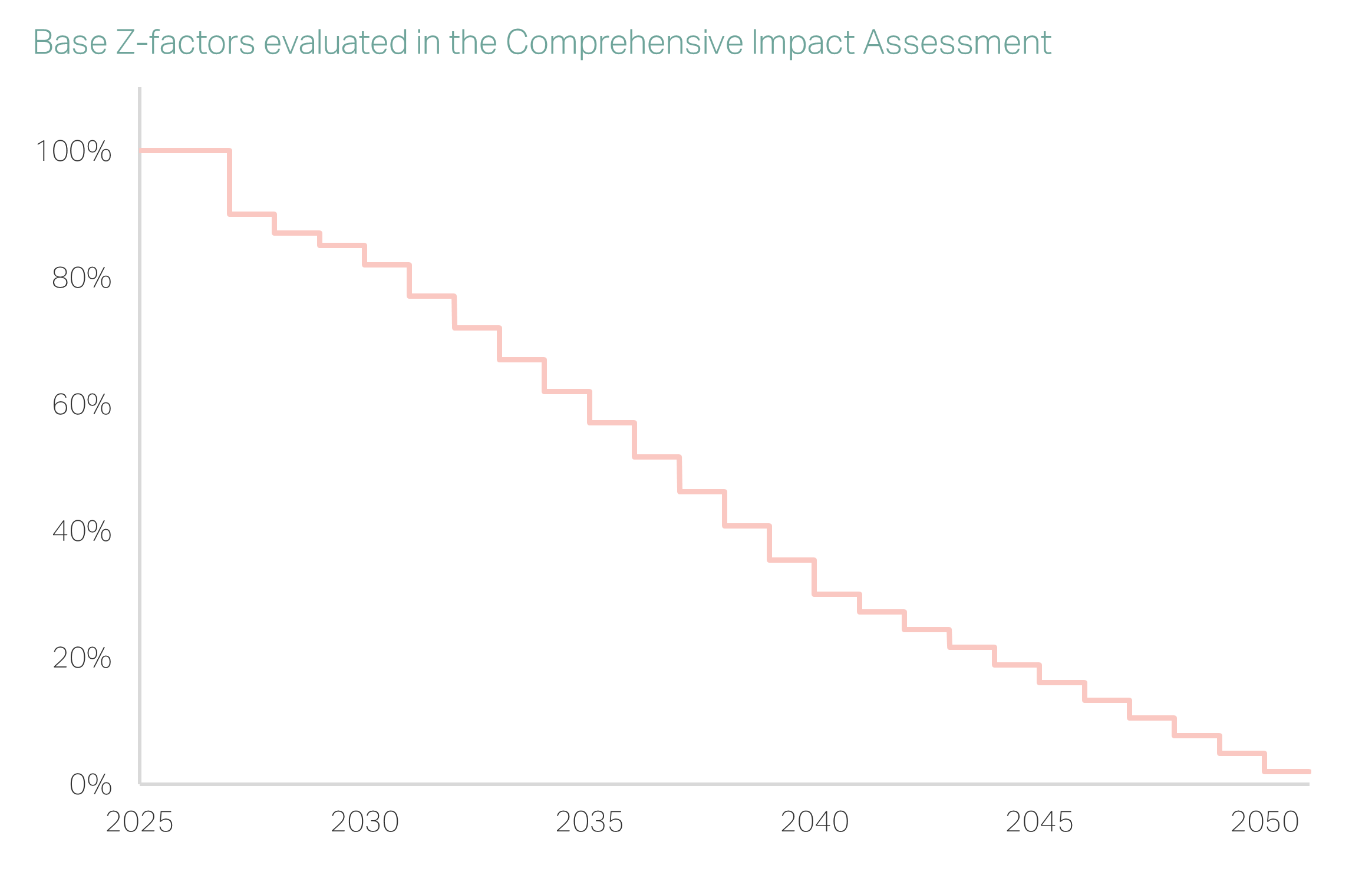

The Comprehensive Impact Assessment report by DNV looked at ‘base’ Z-factors that align with the less ambitious indicative checkpoints in the Strategy. This scenario is also the basis of proposed Z-factors in the latest MTMs proposal from the EU and Japan (IMO-GHG 17/2/2), while the two other proposals considered in our analysis (see below) do not specify Z-factors.

We wanted to validate the ability of these base Z-factors to meet the Strategy’s indicative checkpoints using our NavigaTE model. We constructed a scenario in NavigaTE that assumes high availability of sustainable fuels, allowing us to isolate the impact of the GFS on emissions from shipping. In other words, we tested whether the regulation is effective, not whether the market supplied enough fuel. The RU in our analysis is set at 450 USD/tCOeq (see previous edition for how we arrived at this number).

We evaluated three versions of the MTMs based on existing Member State proposals:

• GFS with flexibility, adjusted TTW (ISWG-GHG 17/2/7): This proposal consists of a GFS with the ability to trade surplus units with flexibility. The emissions scope is tank-to-wake (TTW) adjusted using well-to-wake (WTW) scaling factors.


• GFS with flexibility and levy/reward, WTW (ISWG-GHG 17/2/2): This proposal also has a GFS with flexibility, but adds a levy with a reward scheme and a WTW emissions scope. For the levy, we assumed a contribution of 100 USD/tCO₂eq. We also assumed that the reward only applies to e-fuels and starts at 400 USD/tCO₂eq abated, declining to 200 USD/tCO₂eq abated in 2040.


• GFS with no flexibility and a levy, WTW (ISWG-17/2/15): The final proposal we evaluated has a GFS without the ability to trade surplus units. This proposal includes a levy and has a WTW emissions scope. For the levy, we assumed a contribution of 150 USD/tCO₂eq.

We assessed whether each of the three proposals could meet the indicative checkpoints in the Strategy using the base Z-factors from the Comprehensive Impact Assessment (see Y5 scenarios 28 and 32).

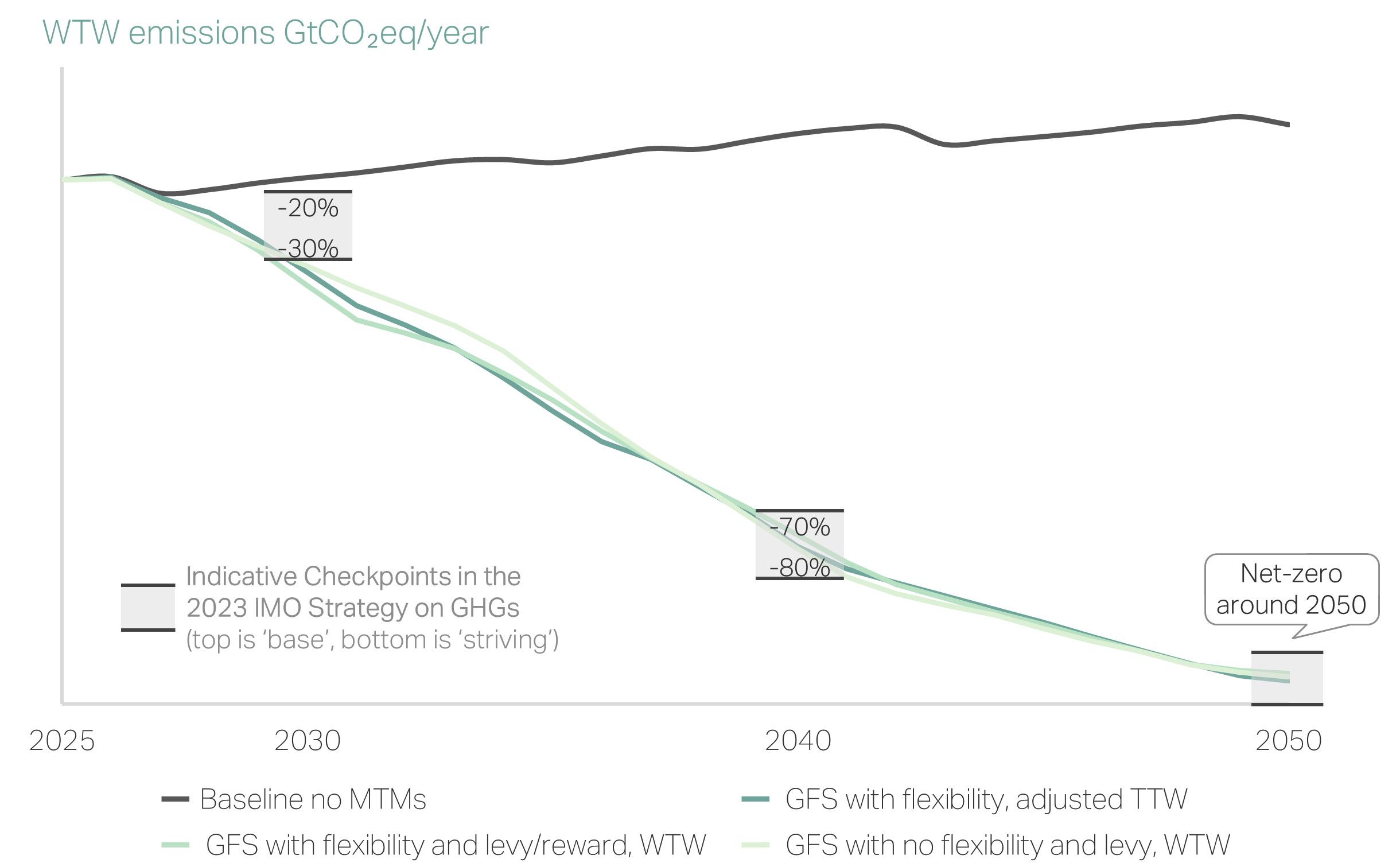

Our simulations in NavigaTE show that all three proposals can deliver on the absolute emissions reductions in the Strategy when using the base Z-factors and an RU of 450 USD/tCO₂eq, with relatively small differences in the results between proposals. Taken together with the analysis in our previous edition, the consistency between the simulations highlights that 1) base Z-factors and 2) an RU of 450 USD/tCO₂eq are the most important elements of a GFS for driving sustainable fuel adoption. Without both elements, the MTMs would be unlikely to reach the indicative checkpoints.

Beyond the RU and Z-factors, other elements will also have impacts which are not shown in our results. For example, flexibility could help lower the cost of the transition by enabling those with the lowest abatement cost to take on more of the mandated reduction. A levy plus reward or feebate mechanism could help incentivize sustainable fuels. Revenue generation also plays a crucial role in funding for objectives such as ensuring a just and equitable transition. Beyond meeting the emissions reductions targets, these mechanisms will be critical for the overall success of the MTMs and achieving long-term maritime decarbonization.

There is such a thing as overly ambitious Z-factors

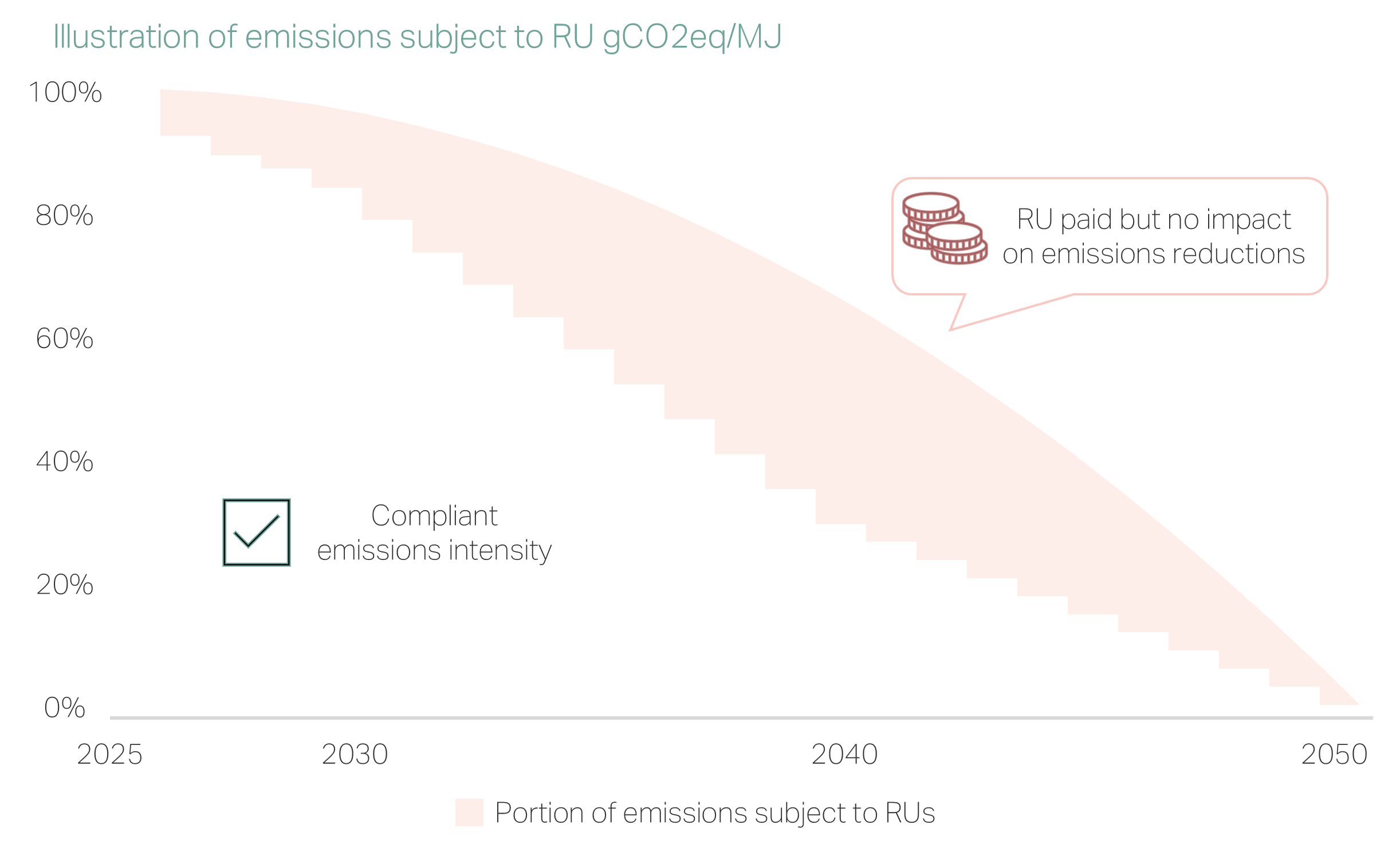

Unlike a levy, the goal of a GFS is not to add costs for GHGs, but to ensure consistent emissions reductions by driving a transition to sustainable energy. However, if Z-factors are set too high, exceeding the global fleet's ability to adopt sustainable alternatives, the GFS will drive substantial RU payments with minimal additional emissions reductions — a consequence that should be carefully considered when designing the MTMs.

Unrealistic targets that fail to drive a transition to sustainable energy, while simultaneously substantially increasing shipping costs, could lead to rollbacks of the regulations. This would undermine stakeholder confidence that the measures will remain in place, with negative consequences for decarbonization.

We have already seen some real-world examples of this risk of rollbacks becoming a reality. For instance, the US’ Renewable Fuel Standard set aggressive biofuel blending targets, but slow production of advanced biofuels forced lawmakers to adjust mandates in 2023. Similarly, the UK initially planned to ban the sale of new petrol and diesel cars by 2030, but revised the cut-off to 2035 due to infrastructure and market challenges.

In the shipping context, setting Z-factors beyond what is practically feasible risks similar rollbacks. Overly ambitious targets are likely to face challenges including upskilling of workers, port infrastructure, competition with other sectors for scarce fuels and feedstocks, and limited shipyard capacity for newbuilds and retrofits.

Given these challenges, industry needs confidence to invest in new systems and technologies. A GFS trajectory that does not seem practically achievable can lower confidence and investment if companies expect changes. Investors may stay on the sidelines if they believe that overly ambitious targets are unachievable and therefore will inevitably be removed or reduced. A recent report from the European Investment Bank found that uncertainty about whether ambitious government mandates would be maintained was a key investment risk for fuel suppliers. Furthermore, IMO policy that fails to achieve its goals could trigger political backlash or lack of faith in future measures. Therefore, Member States should agree on ambitious but feasible Z-factors.

By pairing ambitious but feasible Z-factors with strong incentives through a sufficiently high RU, a GFS can create the certainty needed for fuel producers and shipping operators to confidently make long-term investments in maritime decarbonization.
